Parallel Diagnostic System Adapter

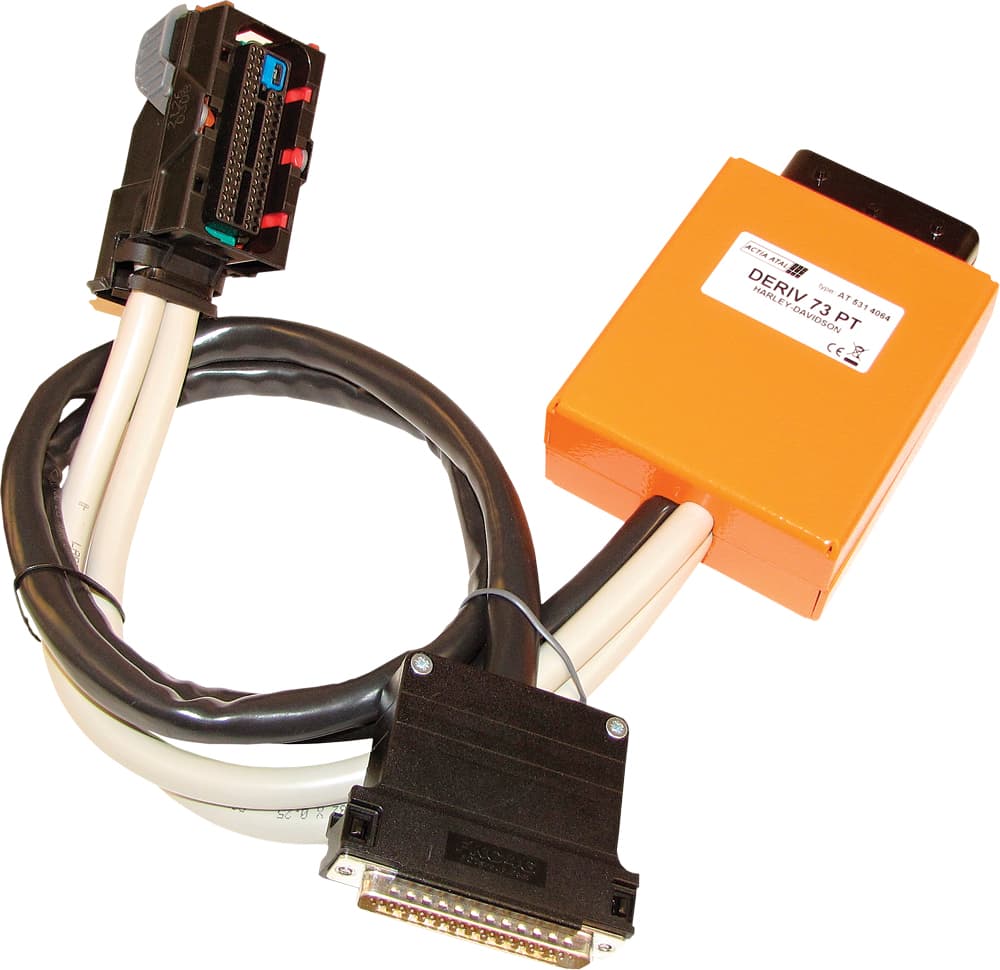

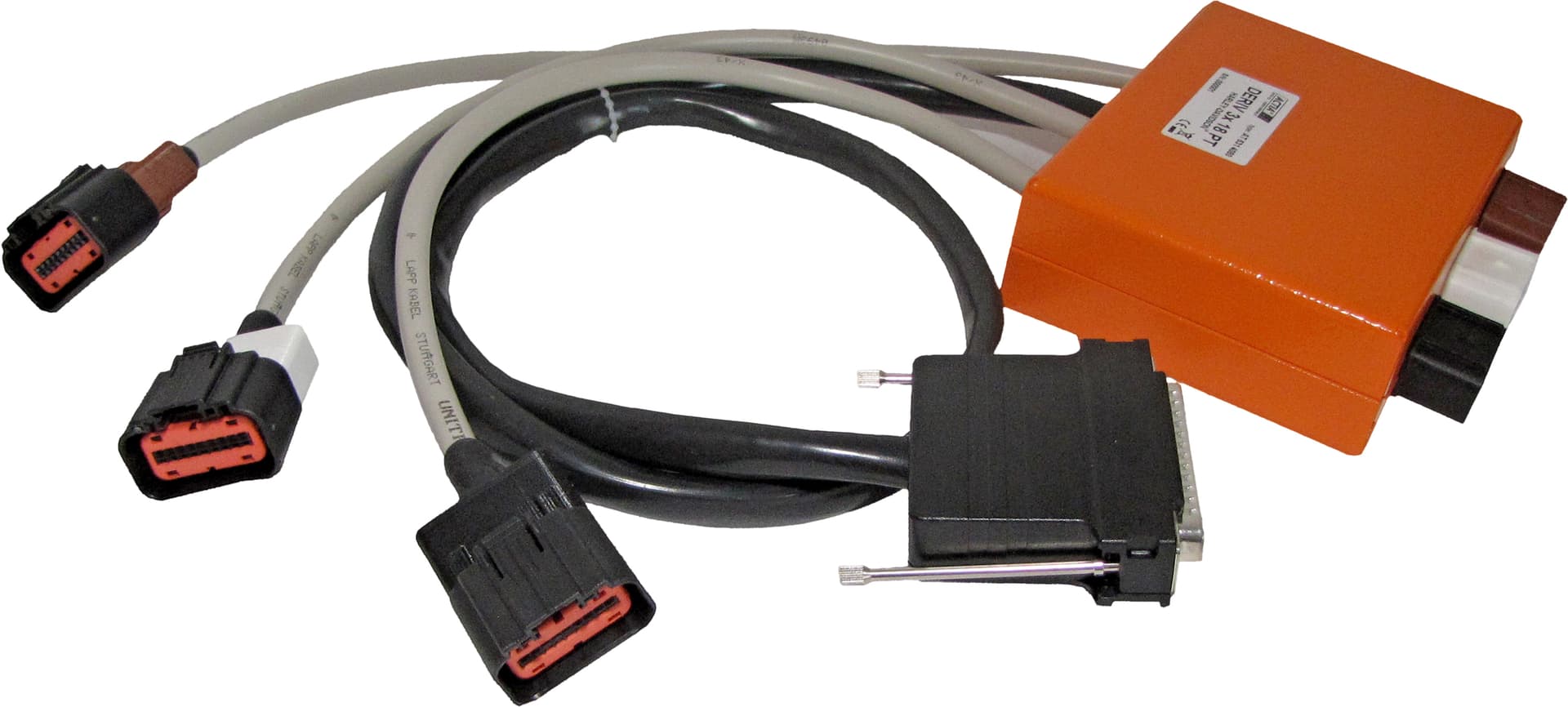

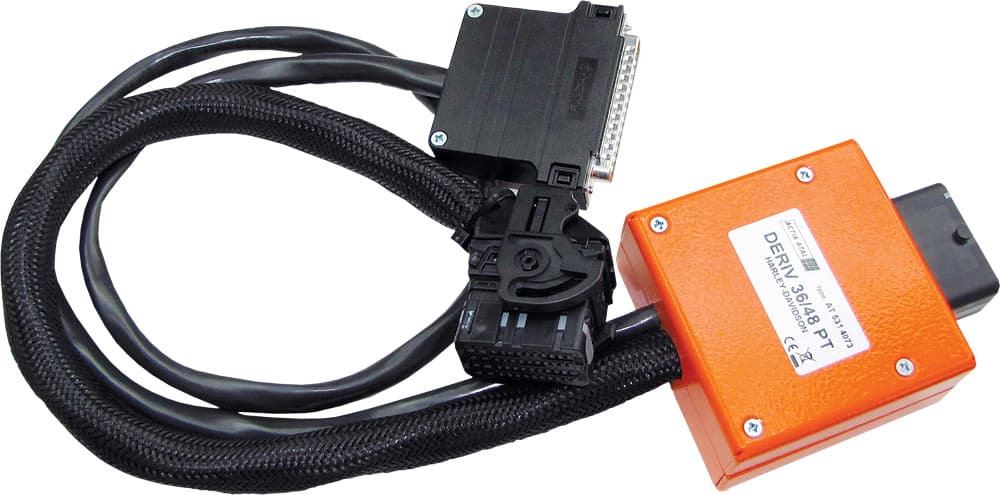

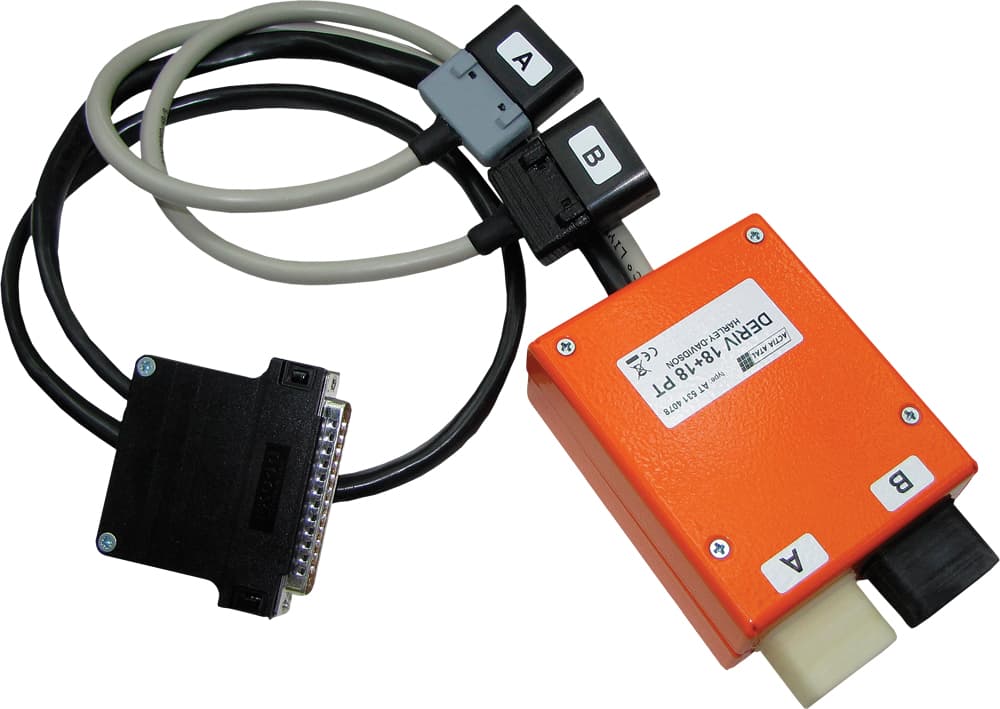

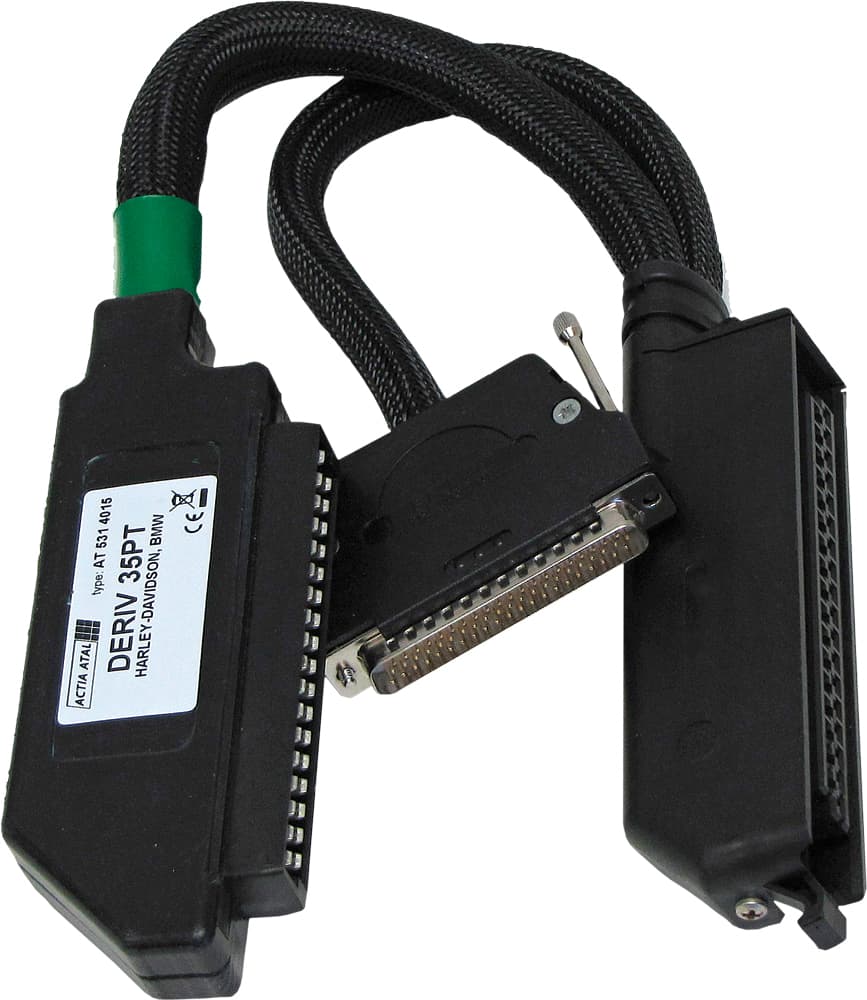

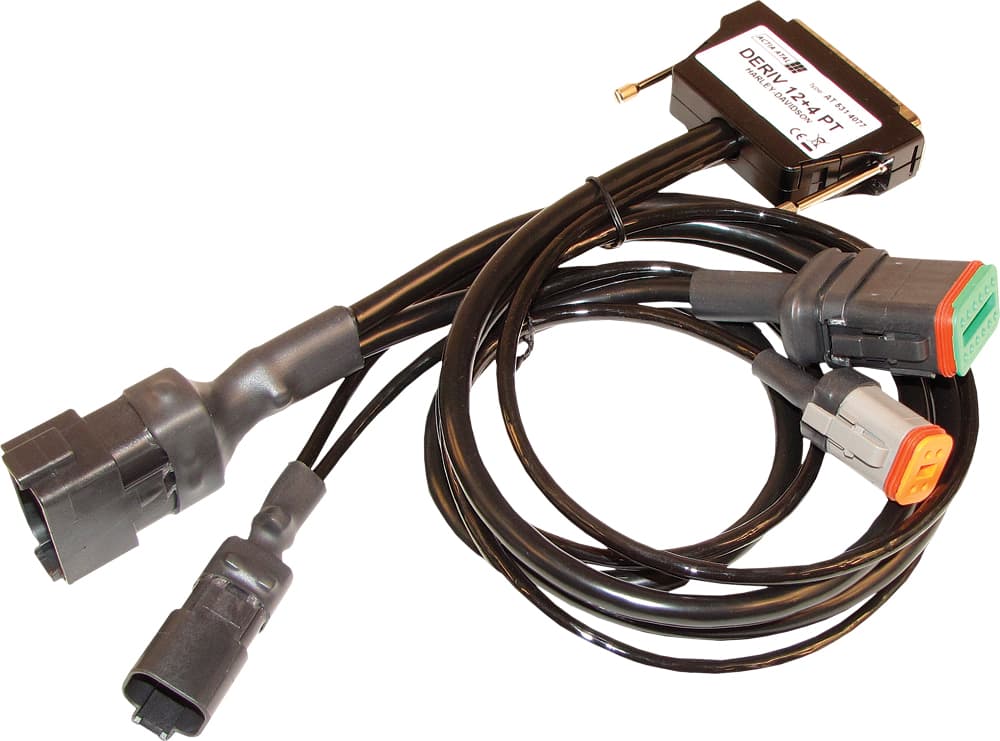

DIAG4 BIKE Parallel Diagnostic System Adapter Efficient, non‑invasive EFI and module diagnostics — the DIAG4 BIKE Parallel Diagnostic System Adapter lets technicians measure input and output signals from the Electronic Fuel Injection (EFI) module and other control modules while the engine is running. Designed for speed, safety and accuracy, it minimizes downtime and preserves factory wiring integrity. Complete monitoring : Breakout box exposes clearly labeled test points for every EFI connector pin, giving fast access to sensor, actuator and communication signals. Live signal & waveform capture : Measure real-time waveforms and transient behavior on running engines to diagnose ignition, fuel injection, sensors and actuators. Non‑disruptive installation : The harness adapter and breakout box insert between the EFI module and motorcycle wiring harness so systems continue to operate normally during testing. Wiring harness integrity checks : Easily disconnect the ECU from the breakout box to perform quick continuity and leakage current tests on the harness without damaging connectors. Durable, service‑ready design : Rugged connectors and clear labeling streamline diagnostics in workshop and field environments. Ideal for motorcycle technicians, tuners and diagnostic professionals, the DIAG4 BIKE Parallel Diagnostic System Adapter speeds troubleshooting, improves repair accuracy and reduces trial‑and‑error part replacement.
