ULTRACOOL TC Front Mount Oil Cooler Drop oil temps up to 50°F and protect your motorcycle from overheating with the ULTRACOOL TC Front Mount Oil Cooler. Engineered for optimal performance, this front-mounted system keeps oil in the ideal 200–230°F range for improved engine life and consistent power. Front mount design: Installs below the regulator for a clean, factory look (will NOT fit 2014–2016 Twin Cooled motors). Efficient heat exchanger: Dual-pass aluminum core with turbulators maximizes heat dissipation. Powerful, waterproof fans: IP68 sealed dual fans deliver 220 CFM and are thermally controlled. Automatic fan control: Included thermal switch engages fans at 210°F and holds them until oil cools to 185°F. Durable hardware: Chrome or powder-coated black grill protects the exchanger; black nylon-coated stainless steel braided oil lines with AN6 fittings. Plug-and-play wiring: Relay and waterproof connectors link to the battery under the seat for quick installation. Installation kit: Oil adapter, LED indicator with perch mount, special oil line fitting wrench, and detailed instructions included. Note: May cause clearance issues or damage on lowered bikes, large front fenders/tires, or poorly maintained/modified suspensions. Upgrade to the ULTRACOOL TC Front Mount Oil Cooler for reliable temperature control, robust construction, and hassle-free installation—designed to keep your engine running cooler, longer.

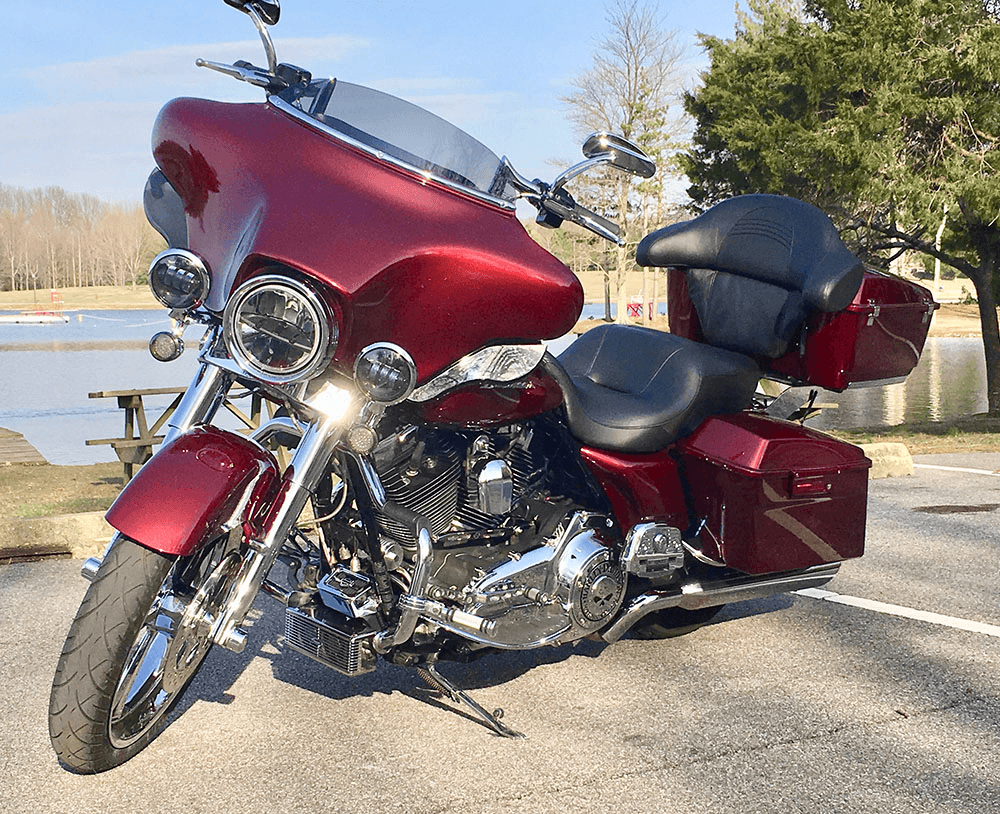

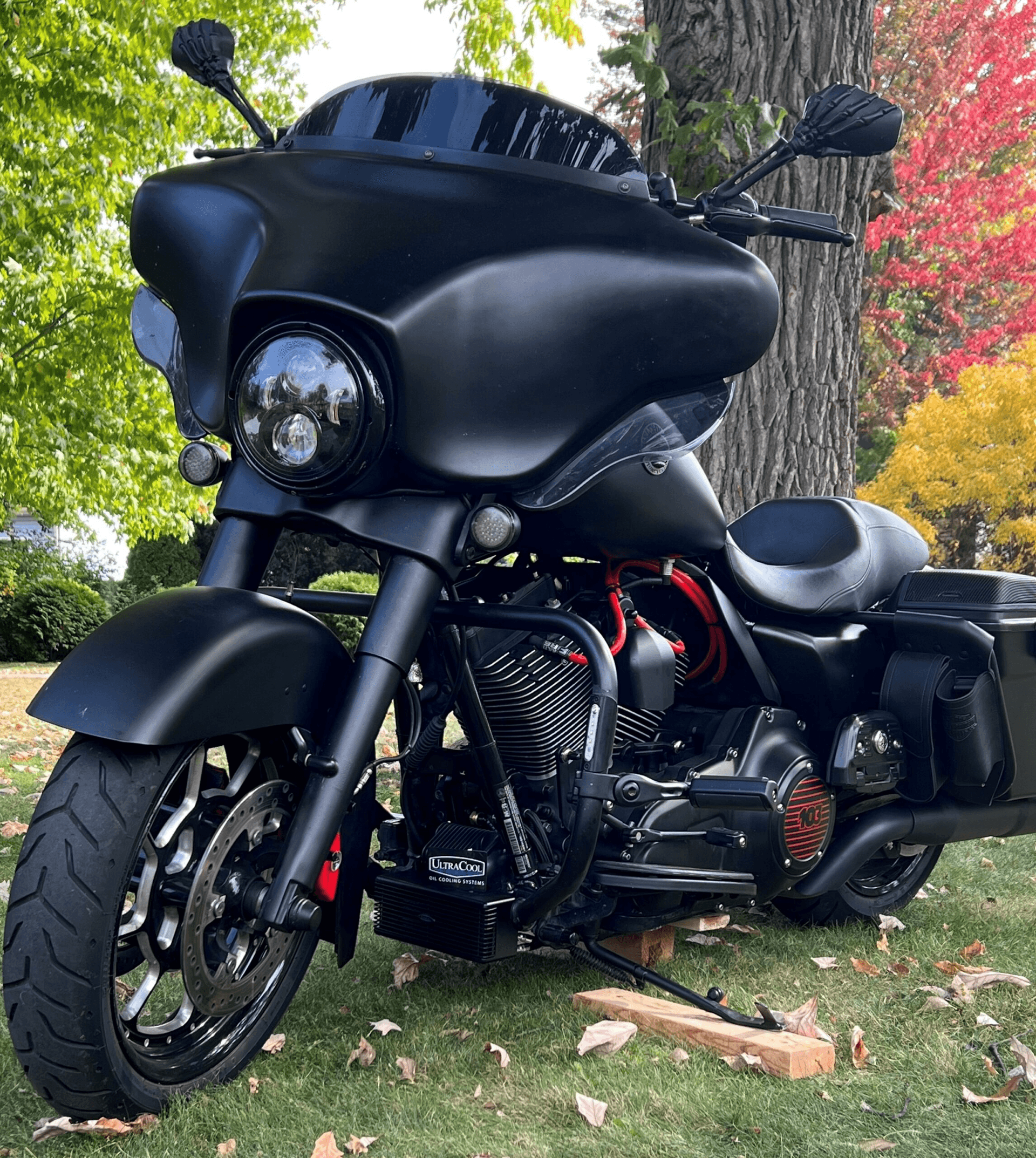

Mounts below the regulator in front of the bike. Will NOT work with `14-16 Twin Cooled motors.

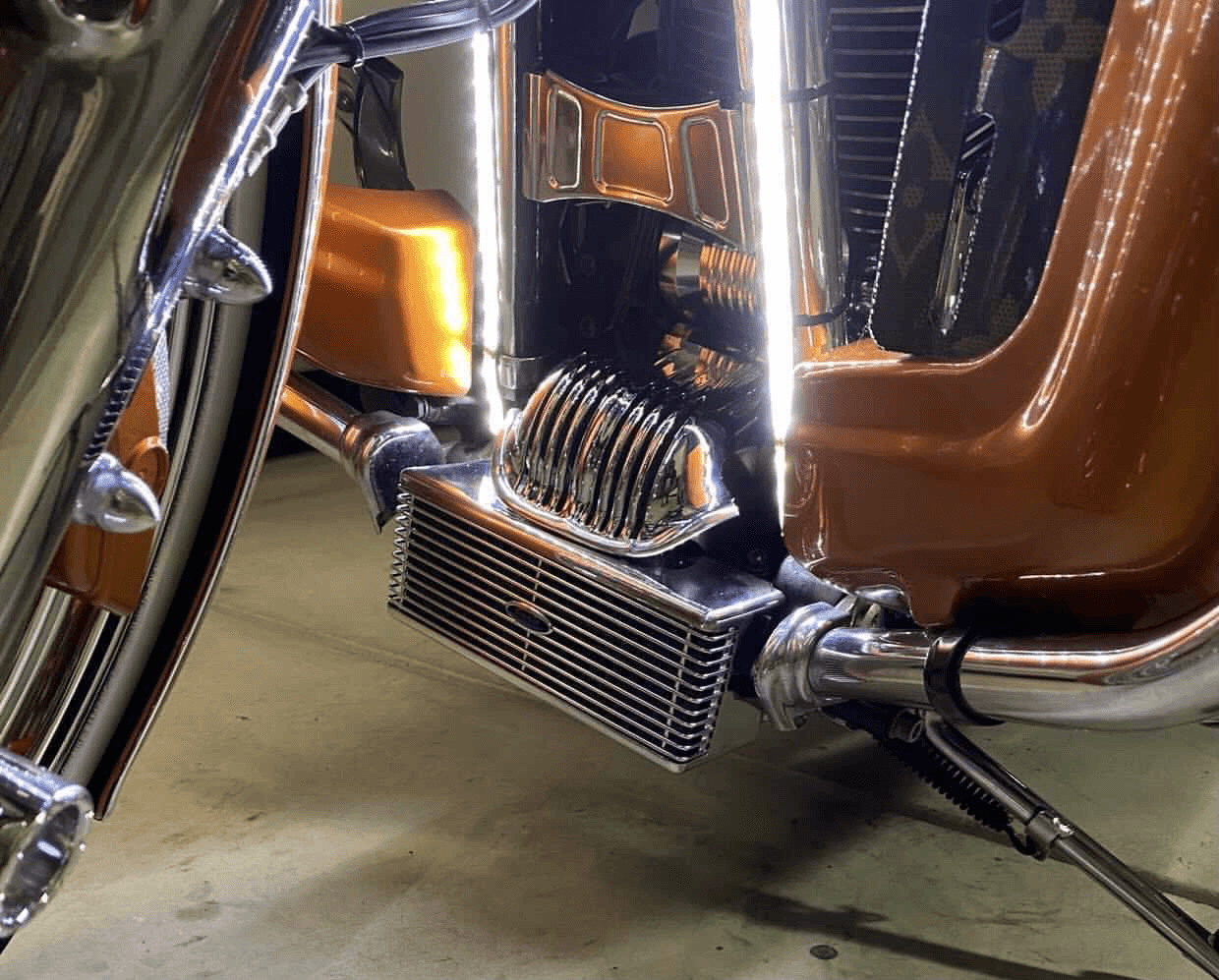

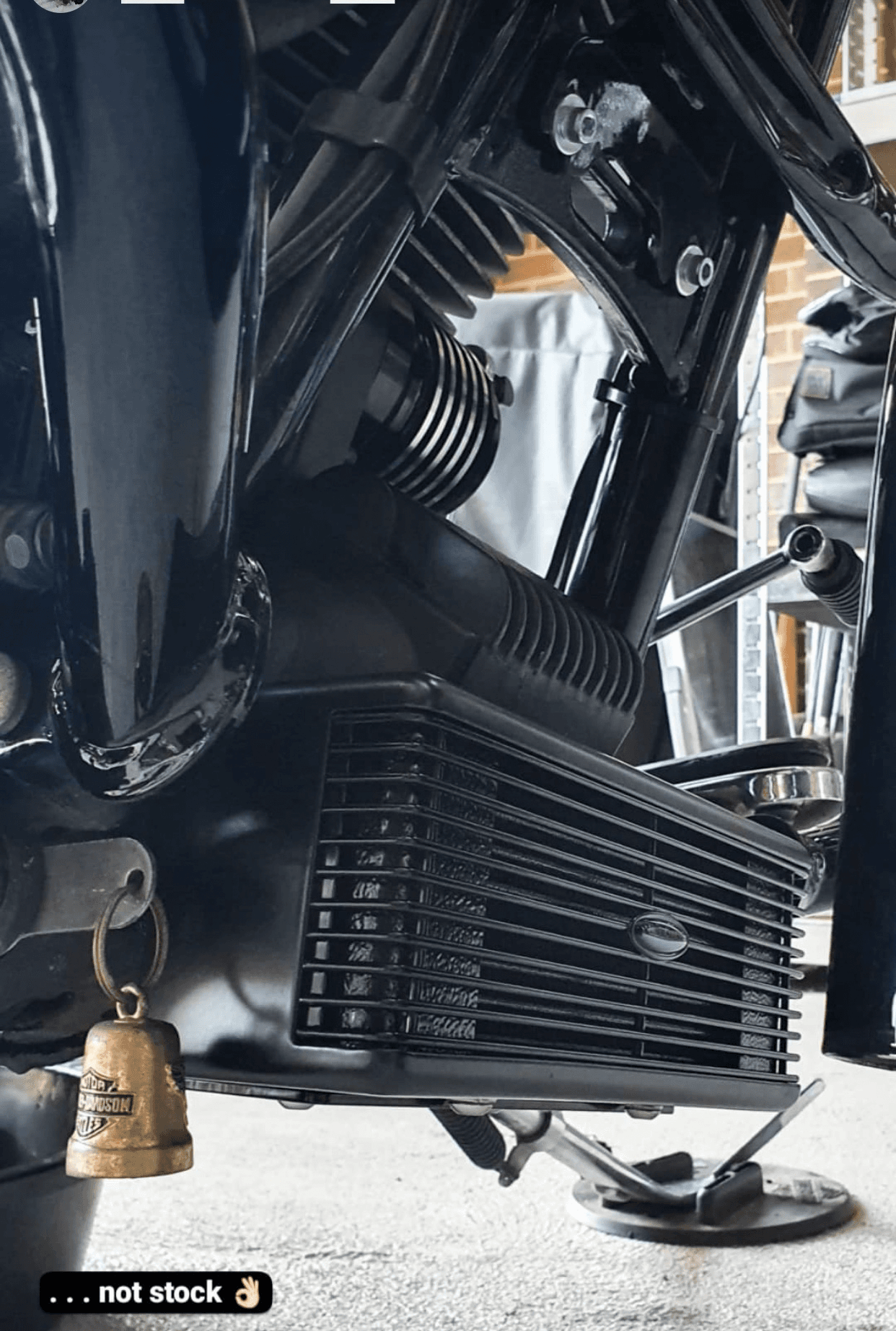

Beautiful Chrome or Powder Coated Black Grill Cover hide and protect the heat exchanger and fans.
Oil Adapter and Thermal Switch with waterproof connectors automatically turns on the powerful dual fans when your oil reaches 210 degrees and they stay on until the oil is cooled to 185 degrees.
UltraCool's goal is to keep your oil at the optimal temperature of between 200 and 230 degrees.
Specially designed dual pass aluminum heat exchanger with turbulators for maximum heat dissipation.
Sealed Waterproof IP68 Dual Fans produce an amazing 220 CFM of airflow.
Plug and play wiring harness with relay and waterproof connectors that all connect to the battery under the seat for simple installation.
Black nylon coated stainless steel braided oil lines with AN6 fittings.
L.E.D. indicator light with Black perch mount indicates when the fans are operating.

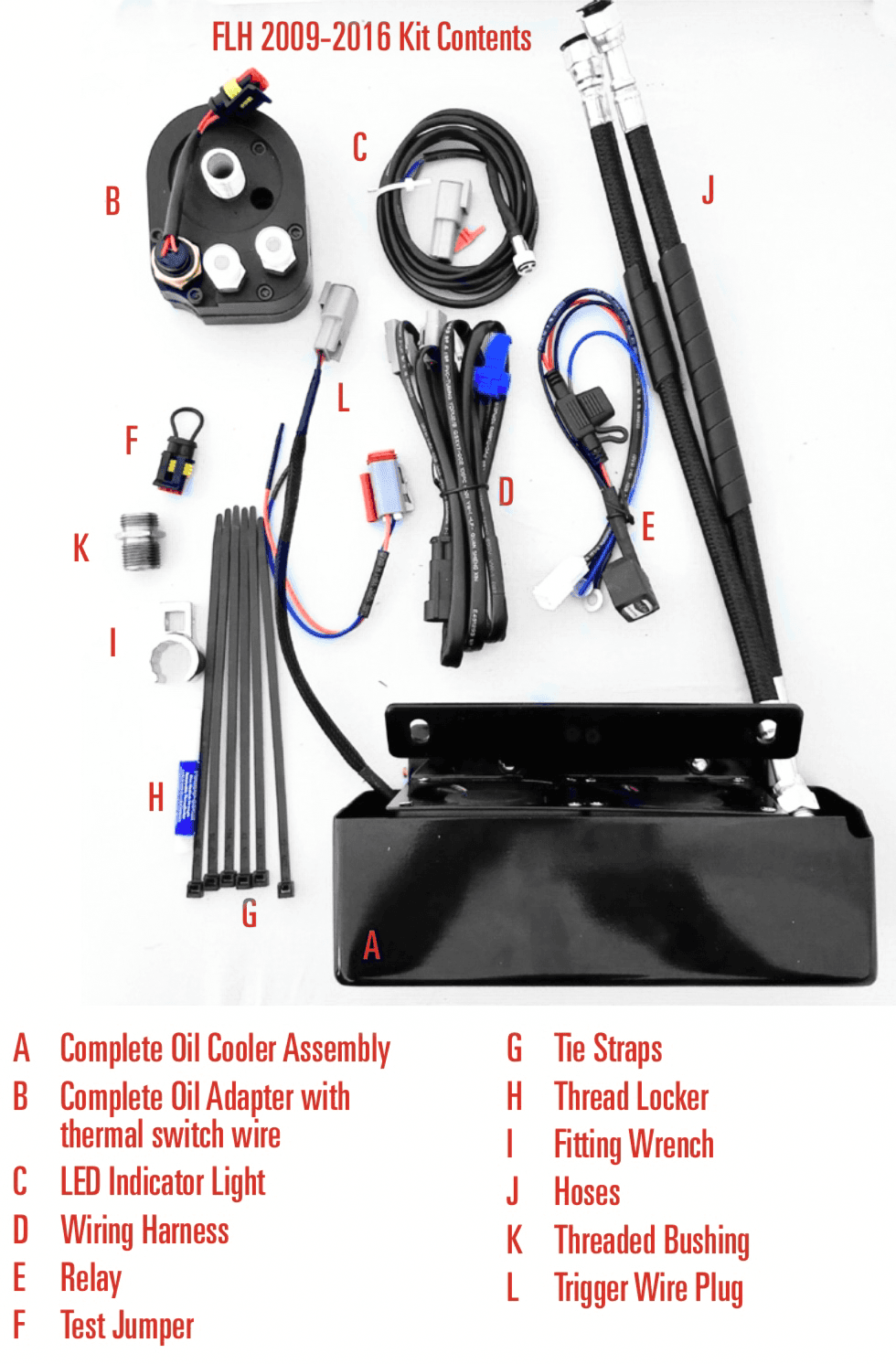

Special designed Oil Line Fitting Wrench and detailed instructions included.
*Could cause damage when installed on lowered, large front fender or tire, non-maintained or modified suspensions.
